Precision hydraulic cylinder honed seamless steel tubes are the core precision components widely used in modern hydraulic and pneumatic system manufacturing. Also universally known as honed tubes in the industrial field, these specialized steel tubes stand out from ordinary steel pipes due to their ultra-precise inner diameter size, ultra-smooth inner wall surface and stable mechanical performance. They have become the preferred tubular material for manufacturing high-performance hydraulic cylinders, pneumatic cylinders and various precision hydraulic equipment, supporting stable operation of mechanical systems in multiple industrial scenarios.



The production of precision honed seamless steel tubes takes high-quality precision seamless steel tubes as the fundamental raw material, which lays a solid foundation for the excellent comprehensive performance of finished products. Different from welded steel tubes that have inherent welding seam defects, seamless steel tubes feature integrated metal structure, uniform wall thickness and outstanding pressure resistance, effectively avoiding hidden dangers such as pressure leakage and structural fracture caused by welding seams. After strict raw material screening, only qualified cold-drawn or hot-rolled precision seamless steel blanks can enter the subsequent honing processing link.



The core manufacturing process of honed tubes is professional inner diameter (ID) honing treatment, which is the key process that endows the tubes with precision hydraulic performance. The honing process adopts high-precision abrasive honing stones, which perform synchronous rotating and reciprocating motion inside the tube bore. This unique processing mode can uniformly remove tiny burrs, tool marks, oxide layers and surface irregularities left on the inner wall during the seamless tube forming process, without damaging the overall structural strength of the steel tube.



Reasonable honing processing enables the inner wall of the seamless steel tube to form a uniform cross-hatch surface texture, which is a typical functional feature of qualified hydraulic cylinder honed tubes. This delicate grid-shaped micro-groove structure is not for aesthetic purposes, but can effectively store and retain hydraulic oil, forming a continuous and stable lubricating oil film between the cylinder inner wall and the piston. It greatly reduces sliding friction during the reciprocating movement of the piston, avoids dry friction abrasion, and significantly improves the flexibility and stability of hydraulic cylinder operation.




Precision hydraulic cylinder honed seamless steel tubes possess extremely strict dimensional tolerance accuracy, which is irreplaceable for high-precision hydraulic systems. After fine honing, the inner diameter tolerance of the tube can reach H7, H8, H9 and other high-precision levels, with the dimensional error controlled within a tiny range. The ultra-high dimensional matching degree ensures a perfect fit between the tube wall, piston and sealing accessories, effectively reducing internal leakage of hydraulic oil and improving the transmission efficiency of the entire hydraulic system.



In terms of surface finish, professionally processed honed tubes achieve an ultra-low inner wall roughness, usually controlled between Ra 0.2μm and Ra 0.8μm. This smooth and flat inner surface can minimize wear and tear on hydraulic seals. Ordinary steel tubes with rough inner walls are prone to scratch sealing rings during operation, leading to seal failure and hydraulic system leakage, while honed tubes can protect precision sealing components for a long time and extend the service life of hydraulic cylinder assemblies.



Benefiting from the high-strength seamless steel tube substrate and precise processing technology, honed tubes have excellent pressure resistance and structural stability. The integrated metal structure enables the tube body to bear ultra-high hydraulic pressure without deformation or expansion, adapting to high-load and high-pressure working environments. Whether it is continuous static pressure or frequent dynamic pressure impact, precision honed seamless steel tubes can maintain stable structural performance and ensure long-term reliable operation of hydraulic equipment.



Common raw material grades for precision hydraulic cylinder honed seamless steel tubes cover multiple high-quality carbon steel and alloy steel models to meet different working condition requirements. The mainstream materials include ST52 carbon steel, 1045 steel, 45# steel and low-alloy structural steel. Different material configurations correspond to different strength, toughness and pressure resistance parameters, which can accurately match the usage demands of light-duty, medium-duty and heavy-duty hydraulic cylinder equipment in various industries.

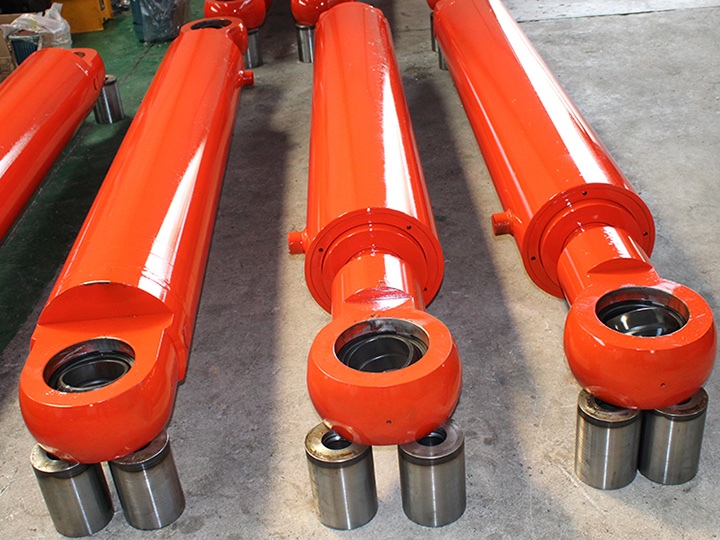

Precision honed seamless steel tubes have extremely wide application coverage in the industrial field. They are most widely used in the manufacturing of hydraulic cylinders and pneumatic cylinders for construction machinery, including excavators, loaders, cranes and other engineering equipment. At the same time, they are also indispensable core components in agricultural machinery, mining equipment, industrial automation equipment, injection molding machinery and hydraulic transmission systems of special engineering vehicles.



In addition to mechanical performance advantages, precision hydraulic cylinder honed seamless steel tubes also show outstanding durability and low maintenance characteristics. The precise honing process eliminates internal surface defects of the steel tube, reduces the probability of hydraulic oil impurity accumulation and pipeline blockage, and lowers the failure rate of hydraulic systems. The stable surface structure and mechanical properties can adapt to harsh working environments such as high temperature, low temperature and dusty conditions, reducing equipment maintenance frequency and operating costs for enterprises.



Manufacturers of high-quality honed seamless steel tubes will implement strict multi-process quality inspection in the production process. From raw material composition detection and wall thickness uniformity inspection, to finished product inner diameter tolerance testing, surface roughness detection and pressure resistance test, every link has strict quality control standards. Some high-standard products also undergo non-destructive testing to ensure zero defects inside the tube body, providing reliable quality guarantee for industrial supporting applications.
