Your hydraulic system runs 15% slower than specification at maximum flow. The pump is working hard. The relief valve isn't lifting. The problem is 20 meters of tube between the pump and the actuator—specifically, the surface roughness and fitting count that create pressure loss no one calculated.



Pressure drop is invisible until you measure it. By then, the system is running hot, slow, and inefficiently. This guide shows you where pressure loss comes from and how to specify tubes that don't create it.







Pressure drop in hydraulic tubes follows ΔP = f × (L/D) × (ρv²/2), where f is friction factor (function of Reynolds number and roughness), L is length, D is ID, ρ is fluid density, v is velocity. Surface roughness (ε) determines friction factor f through the Colebrook-White equation—at high Reynolds numbers (turbulent flow), f becomes primarily a function of ε/D.



For hydraulic oil at 40 cSt, 30 L/min flow through 20mm ID tube: velocity v = Q/A = (0.0005 m³/s) / (π/4 × 0.02²) = 1.59 m/s. Reynolds number Re = ρvD/μ = (870 kg/m³ × 1.59 × 0.02) / (0.04 Pa·s) = 690. Re < 2,000 = laminar flow, f = 64/Re = 0.093. Pressure drop: ΔP = 0.093 × (20/0.02) × (870 × 1.59²/2) = 10,800 Pa = 0.157 bar per meter. Total for 20m: 3.14 bar. At turbulent flow (Re > 4,000): f depends on roughness. Quality tube (ε = 0.0015mm, Ra0.8μm equivalent), ε/D = 0.0015/20 = 0.000075. At Re = 30,000: f = 0.019. Budget tube (ε = 0.05mm, Ra3.2μm equivalent), ε/D = 0.0025. f = 0.028. 47% higher friction factor = 47% more pressure drop.



At turbulent hydraulic flow (Re 10,000–100,000), surface roughness directly determines friction factor. The roughness ratio ε/D—not absolute roughness—determines the penalty.







In hydraulic circuits under 10 meters total length, fitting pressure loss typically exceeds tube friction loss. Each fitting adds 0.1–0.5 bar loss depending on type. A 5-meter run with 8 fittings can lose more pressure than a 20-meter straight run.



Fitting pressure loss coefficients (K values): 90° elbow = 0.9, 45° elbow = 0.4, standard tee = 1.0, gate valve (full open) = 0.2, ball valve = 0.05. Equivalent length calculation: L_eq = K × D/f. For 20mm ID tube at f=0.02: 90° elbow L_eq = 0.9 × 20/0.02 = 900mm = 0.9 meters of equivalent length. A run with 8 elbows = 7.2 meters of equivalent length added. Always specify fittings with lowest K value—use 45° bends instead of 90° where routing allows, use full-port ball valves instead of gate valves for flow control.



For critical hydraulic circuits, calculate total equivalent length (tube + fittings) before specifying pump pressure. Target line velocity: 3–4.5 m/s for pressure lines, 1.5–2.5 m/s for return lines. Velocity above 4.5 m/s creates noise and erosion; below 1.5 m/s allows oil settlement and aeration.







Pressure drop costs energy in two ways: direct throttling (relief valve if pump over-pressurizes for drop compensation) and efficiency loss (pump works against accumulated system back-pressure). A 5-bar total system pressure drop at 100 L/min costs approximately $3,800/year in wasted energy at $0.10/kWh.



Pump input power = (P × Q) / (η_pump × η_motor). At 100 L/min = 0.00167 m³/s, 210 bar = 21 MPa, pump+-motor efficiency 75%: Input power = (21,000,000 × 0.00167) / 0.75 = 46,700 W = 46.7 kW. If system has 5 bar unnecessary pressure drop (2.4% of operating pressure): wasted power = 46.7 × 0.024 = 1.12 kW. Annual energy waste at 6,000 hours/year, $0.10/kWh: $672/year per circuit. For a machine with 5 hydraulic circuits: $3,360/year wasted. For an entire facility with 50 machines: $168,000/year. Pressure drop is not a design detail—it's a significant energy cost driver.







Pressure drop is calculable and preventable. Specify tubes by ID (not OD), target velocities by line type (3–4.5 m/s pressure, 1.5–2.5 m/s return), minimize fittings, and verify total equivalent length against pump pressure capability. Every bar of pressure drop you eliminate is a bar your pump doesn't have to generate—and $400–800 per year per circuit that stays in your operating budget.

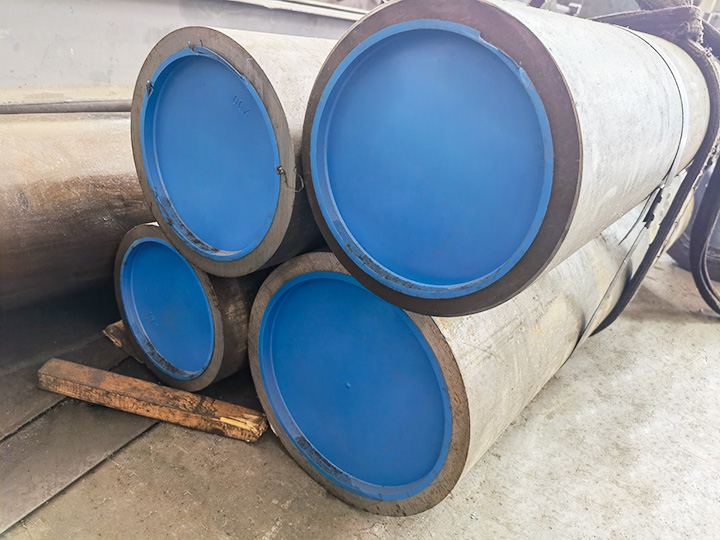

Wuxi Tengye hydraulic tubes — ISO 3320 standard sizes, consistent Ra0.4–0.8μm surface finish for minimum friction, full pressure testing and flow testing documentation.
