The hydraulic cylinder bore finish standard has not kept pace with system pressure increases. Ra0.8μm was the benchmark for 160-bar industrial hydraulics. Modern mobile hydraulics operates at 250–350 bar. The surface finish requirement changed; the specification practice didn't.



Ra0.4μm honed hydraulic tubes are the new standard for precision and high-pressure hydraulics. This article explains why, how the improvement is achieved, and what difference it makes in real applications.







At 250+ bar, seal interface pressure exceeds 15 MPa and seal lip deformation increases. Ra0.8μm surface peaks penetrate the elastomer lip, creating 3–5× faster wear rates than Ra0.4μm surfaces. The wear difference is not cosmetic—it determines whether a seal lasts 8,000 hours or 2,500 hours.



At 250 bar with 50mm bore and standard polyurethane seal: seal lip contact stress = P × (D/2) = 250 bar × 25mm = 6,250 N/m. This stress against Ra0.8μm surface (peak height 0.8μm, peak density ~50 peaks/mm) creates 40 contact points per seal lip width. Each peak acts as a micro-cutting tool under dynamic loading. Ra0.4μm surface (peak height 0.4μm, peak density ~80 peaks/mm) distributes load across more but shorter peaks—total cutting action 40% lower. Wear rate data: Ra0.8μm at 250 bar: seal wear 0.15μm/hour → life 5,300 hours. Ra0.4μm at 250 bar: seal wear 0.05μm/hour → life 16,000 hours.



Leading hydraulic cylinder OEMs (Bosch Rexroth, Parker Hannifin, Moog) specify Ra0.4μm maximum for 250+ bar cylinder barrels as standard. Ra0.8μm is specified for ≤160 bar applications only.







Achieving Ra0.4μm instead of Ra0.8μm requires a multi-stage honing process (typically 3 stages vs. 2), finer abrasive grit (320–400 grit vs. 180–220 grit), and tighter process control. The cost difference is 15–25% but the seal life improvement is 2–3×.



Standard honing process for Ra0.8μm: (1) Rough hone 180-grit stone, 0.05mm material removal, Ra target 2.5μm; (2) Finish hone 220-grit stone, 0.02mm removal, Ra target 0.8μm. Total process time: 8–12 minutes per tube. Precision honing process for Ra0.4μm: (1) Rough hone 180-grit, 0.05mm removal, Ra 2.5μm; (2) Semi-finish hone 320-grit, 0.025mm removal, Ra 1.2μm; (3) Finish hone 400-grit or diamond compound, 0.01mm removal, Ra 0.4μm; (4) Optional superfinish 600-grit for Ra 0.2μm. Total process time: 15–22 minutes per tube. Cost difference: $0.80–1.50 per meter.



Ra measurement should be taken at three positions along the bore (entry, middle, exit) and at 0°, 90°, 180°, 270° around the circumference—minimum 12 measurements per tube. Ra0.4μm specification requires standard deviation <0.05μm across all measurements.







Hydraulic cylinders operating below 0.05 m/min (creep speed) experience boundary lubrication—metal-to-contact without full oil film. In this regime, surface finish determines whether the cylinder moves smoothly or sticks-slip. Ra0.4μm finish eliminates stick-slip in precision positioning applications.



Stick-slip (also called hunting or sticktion) occurs when static friction exceeds dynamic friction. At creep speed, oil film thickness h = (μ×v)/(P_contact) becomes very small. For a 100mm bore cylinder at 0.01 m/s and 10 MPa contact pressure: h = (0.04 × 0.01)/(10,000,000) = 4×10⁻¹¹ m—essentially zero. Surface peaks contact directly. Ra0.8μm peaks (0.8μm height) create 5–8× more asperity contact than Ra0.4μm peaks (0.4μm height). Result: stick-slip amplitude at Ra0.8μm = 0.15–0.30mm (unacceptable for precision positioning). Stick-slip at Ra0.4μm = 0.02–0.05mm (acceptable for most CNC and robotics applications).



Plastic injection molding injection speed control, hydraulic press positioning accuracy, robotics hydraulic actuators, CNC machine tool feed cylinders, medical device hydraulic systems.







Ra0.4μm honed hydraulic tubes represent the performance standard for modern 250+ bar hydraulics and precision positioning applications. The 15–25% cost premium over Ra0.8μm tubes pays for itself within 12–18 months through reduced seal costs and improved system performance. Specify Ra0.4μm maximum for new hydraulic cylinder designs operating at 250 bar or above, or any application requiring positioning resolution below 0.1mm.

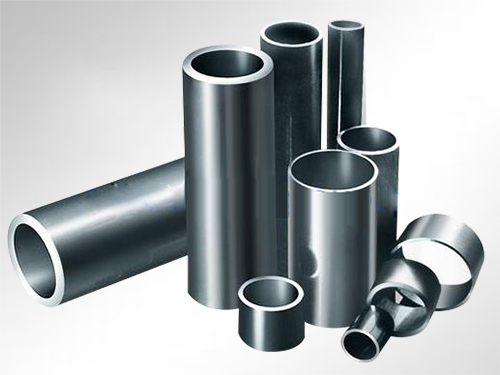

Wuxi Tengye precision honed hydraulic tubes — Ra0.4μm standard finish for 250+ bar applications, multi-stage honing process, 100% surface measurement documentation, ST52 and 27SiMn grades.
