Cold Drawn Steel Tube: Process, Benefits & Applications
Release time：2026-09-07 Visits：0
Wuxi Tengye Machinery Co., Ltd. specializes in high-precision cold drawn tubes, honing tubes and rolling tubes, supplying cold drawn steel pipes and cylinder barrels to machinery manufacturers worldwide.Tengye

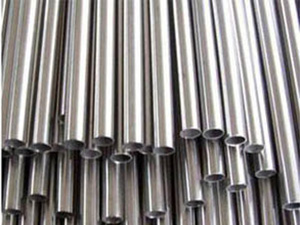

Cold drawn steel tube is a seamless steel pipe manufactured by pulling a hot-rolled tube through a die at room temperature. This cold working process dramatically improves dimensional accuracy, surface finish and mechanical strength, making cold drawn steel tube the preferred raw material for hydraulic cylinders, pneumatic cylinders, shafts and precision machinery components. This article explains the cold drawing process, its advantages, and where it is applied.
How Is Cold Drawn Steel Tube Manufactured?
The cold drawing process transforms a hot-rolled seamless tube into a precision product through the following steps:
1. Preparation — the hot-rolled tube is pickled and lubricated to remove scale and reduce friction.
2. Cold drawing — the tube is pulled through a die that is slightly smaller than the original outer diameter, reducing the diameter and wall thickness while increasing length.
3. Annealing — the drawn tube is heat-treated to restore ductility and relieve internal stress between passes.
4. Repeat passes — multiple drawing passes achieve the required final dimensions.
5. Finishing — the tube is straightened, cut and inspected for dimensional accuracy and surface quality.
What Makes Cold Drawn Steel Tube Different?
Compared with hot-rolled steel pipe, cold drawn steel tube offers:
- Tighter dimensional tolerances — essential for precision assemblies.
- Superior surface finish — a smoother bore and outer surface reduce friction and improve sealing.
- Higher strength — cold working strain-hardens the material.
- Better concentricity — more consistent wall thickness around the circumference.
- Improved straightness — critical for long cylinder applications.
Cold Drawn vs. Honed Tube: Understanding the Difference
- Cold drawn tube — provides a precision base material with controlled OD and ID.
- Honed tube — undergoes additional internal honing to achieve a mirror-like bore with extremely low surface roughness, ready for direct use as a hydraulic cylinder barrel.
- Rolled tube — uses a rolling/burnishing process to achieve a high-accuracy internal surface with improved fatigue resistance.
For hydraulic cylinder barrels, Tengye Machinery supplies cold drawn, honing and rolled tubes that meet the exacting requirements of sealing systems and high-pressure operation.Tengye
Applications of Cold Drawn Steel Tube
- Hydraulic cylinder barrels — the most common application, where bore accuracy and surface finish determine sealing life.
- Pneumatic cylinder barrels — requiring smooth bores for low-friction operation.
- Piston rods and shafts — precision machined and plated for wear resistance.
- Automotive components — shock absorbers, steering parts and transmission shafts.
- Construction and engineering machinery — telescopic booms, lifting cylinders and structural tubes.
- Oil and gas equipment — pressure lines and precision components.
Advantages of Choosing Cold Drawn Steel Tube
- Reduced machining cost — closer tolerances mean less material removal in final processing.
- Consistent quality — repeatable process yields uniform mechanical properties.
- Material efficiency — cold drawing improves strength, allowing thinner walls.
- Excellent machinability — a clean, scale-free surface extends tool life.
How to Select a Cold Drawn Steel Tube Supplier
1. Confirm material grade — ensure the tube meets your specified steel grade and mechanical properties.
2. Check tolerances — verify OD, ID, wall thickness and straightness tolerances.
3. Inspect surface quality — require consistent surface finish free of defects.
4. Verify supply capability — confirm the manufacturer can support your order volume and lead time.
5. Look for application expertise — a supplier experienced in cylinder applications understands bore and surface requirements.
Why Choose Wuxi Tengye Machinery
Wuxi Tengye Machinery Co., Ltd. has focused on the R&D and production of
cold drawn tubes, honing tubes and rolled tubes for over 10 years, manufacturing various specifications of high-precision tubes, hydraulic cylinder barrels, pneumatic cylinder barrels and piston rods according to customer drawings.Tengye
Contact Tengye Machinery for a quotation on cold drawn steel tube, honed tube or rolled tube for your next project.
