Your hydraulic cylinder fails prematurely. The barrel corrodes. Seals wear in months. The root cause? Wrong material selection before the first seal was ever installed.



Choosing a hydraulic cylinder barrel isn't about picking the cheapest steel grade—it's about matching metallurgy to your application's actual pressure demands, media compatibility, and service environment. This guide covers the four material families used in hydraulic barrel manufacturing, their mechanical properties, and the selection logic that prevents premature failures.







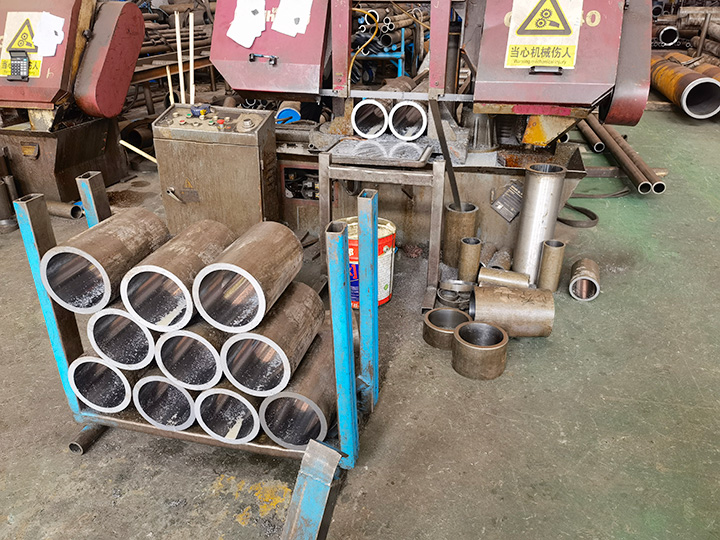

The hydraulic barrel industry predominantly uses four steel grades: ST52 (Q355B), 20# (20 carbon steel), 45# (45 carbon steel), and 27SiMn (boron alloy steel). ST52 accounts for approximately 65% of standard hydraulic barrel production due to its 520 MPa minimum yield strength and cost balance.



ST52 (EN 10219 equivalent Q355B) delivers 520 MPa yield strength, 600–700 MPa tensile strength, and 21% minimum elongation. 20# carbon steel offers superior machinability at 355 MPa yield, making it the standard choice for low-pressure hydraulic cylinders under 160 bar. 45# medium-carbon steel at 355–600 MPa yield suits medium-duty applications where wear resistance matters. 27SiMn boron steel reaches 550–850 MPa yield strength and dominates high-pressure hydraulic cylinders exceeding 210 bar due to its quench-and-temper response.



The common mistake is selecting 20# for high-pressure applications because it machines easily. This saves initial cost but multiplies long-term maintenance expenses through accelerated seal wear and barrel wall deformation.







Operating pressure is the primary filter for material selection. Applications under 160 bar can use 20# carbon steel with standard tolerances. 160–250 bar requires ST52 or equivalent Q355B. Above 250 bar, 27SiMn boron steel or specialized alloy steels become mandatory.



A barrel's hoop stress at operating pressure follows σ = P×D/(2×t), where P is pressure, D is bore diameter, and t is wall thickness. At 250 bar with a 100mm bore and 10mm wall, hoop stress reaches 125 MPa—well within ST52's 520 MPa yield margin, but the safety factor of 4.2× falls short when fatigue cycles and pressure spikes are considered. Industry practice recommends minimum 3× static safety factor and 5× for dynamic loading, which pushes high-cycle applications toward stronger grades.



For mobile hydraulic systems (excavators, cranes) where pressure spikes exceed 1.3× nominal, specify ST52 minimum. For industrial presses with controlled pressure environments, 20# may suffice at lower pressures.







Hydraulic cylinder barrel surface roughness below Ra0.8μm (microns) is the single most important factor in seal life. Rough surfaces above Ra1.6μm accelerate seal lip wear by 3–5×, converting a 5,000-hour seal life into 1,000 hours.



Hydraulic barrel honing creates a hatch pattern (typically 30° cross-angle) that retains lubrication oil on the barrel wall. Standard hydraulic barrel finish is Ra0.4–0.8μm. Chrome-plated barrels achieve Ra0.2–0.4μm. Electroless nickel-plated barrels maintain Ra0.4μm. Each reduction in Ra value costs machining time but directly correlates to seal wear rates. Industry data from hydraulic system integrators shows barrel surface finish as the top factor in cylinder MTBF (mean time between failures).



Specifying a smooth finish (Ra0.2μm) without matching seal compatibility. Some seal compounds (particularly PTFE-based) wear faster on super-smooth surfaces due to insufficient oil retention.







Chrome-plated barrels excel in dirty media and wet environments where corrosion resistance matters. Bare steel barrels in clean hydraulic systems with filtered oil (β3≥200) outperform chrome in terms of oil retention and sealing surface compatibility.



Hard chrome plating (25–50μm thickness) provides 850–1000 HV hardness, corrosion resistance to pitting, and reduces friction coefficient from 0.15 (bare steel) to 0.08 (chrome). Chrome's main drawback: environmental compliance. Hexavalent chromium (Cr VI) plating is increasingly restricted under REACH and EPA regulations. Trivalent chromium and nickel plating offer alternatives but at 60–70% of chrome's hardness. Hard anodizing (Type III, 25–50μm) provides 500–600 HV for aluminum barrels but is not applicable to steel hydraulic cylinders.



Wet or outdoor environment → hard chrome or nickel plating. Clean indoor hydraulic system with filtered oil → honed bare steel. Abrasive media (drilling mud, concrete) → chrome required.







Material selection for hydraulic cylinder barrels cascades from pressure to environment to surface finish requirements. Start with operating pressure to narrow steel grade (20# < 160 bar; ST52 160–250 bar; 27SiMn > 250 bar). Then evaluate media compatibility and corrosion exposure. Finally, specify surface finish: Ra0.4–0.8μm honed finish for standard hydraulic service; chrome plating for corrosive or abrasive environments.
