Introduction

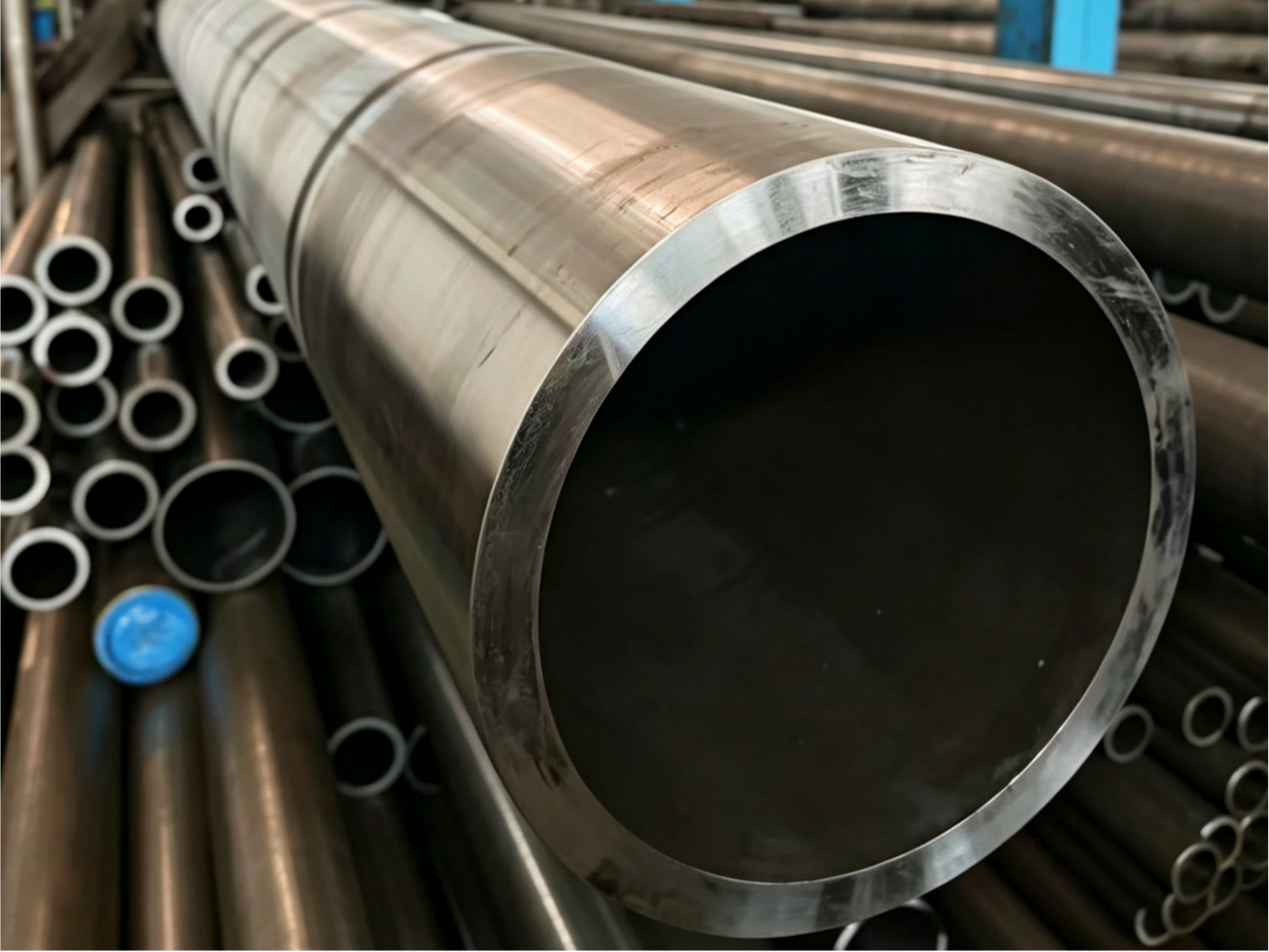

In the global industrial landscape, cold drawn seamless tubing stands as a cornerstone of high-performance engineering, serving critical roles in hydraulic systems, pressure vessels, and precision mechanical assemblies. Its reliability, durability, and dimensional accuracy are not merely byproducts of production but the direct result of rigorous forming control—a discipline where Wuxi Tengye Machinery Co., Ltd. has established itself as an industry leader. As shown in our production facility, the smooth, uniform surfaces of our finished tubes reflect our unwavering commitment to precision manufacturing. This article delves into Tengye’s comprehensive forming control strategies, highlighting how our expertise transforms raw materials into high-quality seamless tubing that meets the most demanding industrial standards.
The Fundamental Role of Forming Control in Cold Drawn Seamless Tubing
Cold drawn seamless tubing is produced through a multi-stage process that transforms hot-rolled mother tubes into precision-engineered components. Unlike welded tubing, seamless tubing eliminates the risk of weld seam failure, making it ideal for high-pressure, high-stress applications. The forming process is the heart of this transformation, where controlled reduction, shaping, and finishing define the tube’s final properties.
Forming control encompasses every aspect of the drawing process, from raw material selection to post-production testing. It ensures that each tube maintains consistent dimensions, mechanical properties, and surface quality, even as it undergoes significant deformation during drawing. At Tengye Machinery, we view forming control not as a single step but as an integrated system that guides every decision in our production line.
Step 1: Raw Material Selection and Pre-Forming Preparation
The journey of our
cold drawn seamless tubing begins with the careful selection of raw materials. We source high-grade carbon steel, alloy steel, and stainless steel mother tubes from certified suppliers, each batch subjected to rigorous chemical and mechanical testing to ensure compliance with international standards. This includes verifying carbon content, alloy composition, and initial mechanical properties such as tensile strength and ductility.
Once approved, the mother tubes undergo pre-forming preparation to optimize them for the drawing process. This includes pickling to remove scale and oxidation, followed by lubrication to reduce friction between the tube and drawing dies. At Tengye, we use specialized lubricants tailored to different materials and drawing parameters, ensuring smooth material flow and minimizing surface defects. We also conduct initial dimensional checks to identify any irregularities that could affect the forming process.
Step 2: Precision Drawing Process Control
The core of our forming control system lies in the cold drawing process itself, where we transform mother tubes into seamless tubing with precise outer diameters, inner diameters, and wall thicknesses. Our drawing equipment is equipped with advanced CNC controls and real-time monitoring systems, allowing us to adjust parameters such as drawing speed, reduction ratio, and die pressure with pinpoint accuracy.
2.1 Dimensional Tolerance Management
One of the most critical aspects of forming control is maintaining tight dimensional tolerances. Our drawing dies and mandrels are precision-machined to specifications, ensuring that each pass reduces the tube’s dimensions uniformly. Real-time sensors track outer diameter, inner diameter, and wall thickness throughout the process, with automatic adjustments made to correct any deviations. This level of control ensures that our tubing meets tolerances as tight as ±0.01mm, making it suitable for applications requiring extreme precision, such as hydraulic cylinder barrels.
2.2 Surface Quality Optimization
Surface defects such as scratches, pits, and oxidation are common challenges in cold drawing. At Tengye, we address these issues through a combination of high-quality tooling, controlled drawing parameters, and in-process inspection. Our dies and mandrels are made from premium tool steel and coated with advanced materials to reduce friction and wear, resulting in a smooth, uniform surface finish. We also implement regular cleaning and maintenance schedules for our drawing equipment to prevent contamination and defects. The polished appearance of our finished tubes, as seen in our production line, is a testament to our effective surface quality control.
2.3 Mechanical Property Tuning
Cold drawing significantly enhances the mechanical properties of seamless tubing, including tensile strength, hardness, and fatigue resistance. However, improper control can lead to excessive brittleness or residual stress, compromising the tube’s performance. Our forming control system includes precise management of drawing reduction ratios and intermediate annealing treatments to balance strength and ductility. We monitor mechanical properties at each stage of production, adjusting parameters to ensure the final tubing meets customer requirements for yield strength, elongation, and impact resistance.
Step 3: Post-Forming Processing and Quality Assurance
The forming control process does not end with the drawing operation. At Tengye Machinery, we implement a series of post-forming steps to ensure every tube meets our rigorous quality standards.
3.1 Straightness and Roundness Correction
After drawing, tubes undergo straightening and sizing operations to eliminate any bends or distortions. Our straightening rolls are calibrated to apply uniform pressure, ensuring each tube is perfectly straight. We also use precision sizing dies to maintain roundness, a critical factor for smooth piston movement in hydraulic systems. Every tube is inspected using laser alignment and coordinate measuring machines (CMM) to verify straightness and roundness.
3.2 Non-Destructive and Destructive Testing
To confirm the integrity of our forming process, we conduct comprehensive testing on every batch of tubing. This includes:
- Ultrasonic Testing (UT): Detects internal defects such as inclusions, voids, and laminations.
- Eddy Current Testing (ECT): Identifies surface and near-surface defects.
- Hydraulic Pressure Testing: Verifies leak-proof performance under high-pressure conditions.
- Tensile and Hardness Testing: Ensures mechanical properties meet specifications.
- Metallographic Analysis: Examines microstructure to confirm proper grain flow and material consistency.
3.3 Surface Finishing and Protection
For applications requiring enhanced corrosion resistance or aesthetic appeal, we offer additional surface finishing options, including polishing, passivation, and coating. Our passivation process creates a protective oxide layer on stainless steel tubing, improving its resistance to rust and chemical corrosion. We also use protective end caps, as seen in our production facility, to prevent damage during storage and transportation.
Tengye Machinery’s Competitive Advantage in Forming Control
At Wuxi Tengye Machinery Co., Ltd., our commitment to forming control sets us apart from competitors in the seamless tubing industry. Our advantage lies in three key areas:
1. Advanced Technology and Equipment
We invest in state-of-the-art drawing machines, CNC controls, and testing equipment to ensure precision at every stage of production. Our real-time monitoring systems provide full visibility into the forming process, allowing us to identify and address issues before they affect product quality.
2. Experienced Engineering Team
Our team of metallurgists, process engineers, and quality control specialists brings decades of combined experience to the table. They work closely with customers to understand their specific requirements and develop custom forming solutions tailored to their applications.
3. Continuous Improvement Culture
We are committed to ongoing research and development, constantly refining our forming control processes to meet evolving industry demands. We regularly review our production data, identify areas for improvement, and implement new technologies and techniques to enhance quality and efficiency.
Key Applications of Tengye’s Precision-Formed Cold Drawn Seamless Tubing
Our expertise in forming control has made Tengye Machinery a trusted supplier to industries worldwide. Our cold drawn seamless tubing is used in a wide range of critical applications:
- Hydraulic and Pneumatic Systems: Our tubing is the preferred choice for hydraulic cylinder barrels, piston rods, and pressure lines, where precision and durability are essential for reliable operation.
- Marine and Offshore Engineering: Corrosion-resistant stainless steel tubing from Tengye is used in shipbuilding, offshore platforms, and coastal infrastructure, withstanding harsh saltwater environments.
- Oil and Gas Industry: High-pressure seamless tubing is used in pipelines, wellhead equipment, and refinery systems, where safety and reliability are paramount.
- Aerospace and Defense: Our precision-engineered tubing meets the strict requirements of aerospace and defense applications, including aircraft hydraulic systems and military equipment.
- Automotive Manufacturing: Cold drawn seamless tubing is used in automotive suspension systems, brake lines, and engine components, where lightweight strength and dimensional accuracy are critical.
Conclusion: Delivering Excellence Through Precision Control
At Wuxi Tengye Machinery Co., Ltd., we believe that great products are not made—they are controlled. Our comprehensive forming control system, from raw material selection to post-production testing, ensures that every cold drawn seamless tubing we produce meets the highest standards of quality, precision, and reliability.
As industries continue to demand higher performance from their components, Tengye Machinery remains at the forefront of innovation, refining our forming control processes to meet new challenges. Whether you require standard seamless tubing or custom-engineered solutions, our team is ready to work with you to deliver products that exceed your expectations.
For more information about our cold drawn seamless tubing or to discuss your specific application requirements, please contact our sales team today. At Tengye Machinery, we are committed to being your trusted partner in high-precision seamless tubing manufacturing.
