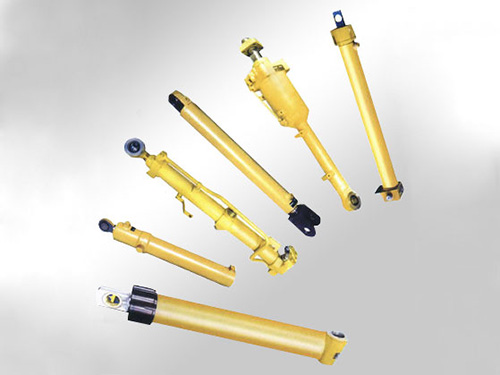

In hydraulic cylinder systems, the honed tube—the precision-machined inner barrel where the piston slides—directly dictates performance, efficiency, and longevity. A poorly finished or ill-fitted honed tube causes excessive friction, seal damage, and pressure loss, leading to frequent downtime and costly repairs. Standard off-the-shelf honed tubes often fail to meet the unique demands of specialized hydraulic applications (e.g., high-pressure industrial presses, corrosion-prone marine equipment, or space-constrained mobile machinery). This is where custom honed tubes excel: engineered to match exact dimensional, material, and surface finish requirements, they optimize hydraulic cylinder performance for specific use cases. This guide explores the critical role of custom honed tubes, their design advantages, manufacturing processes, material selection, and how to source reliable solutions for hydraulic systems.
A custom honed tube is a precision-engineered cylindrical barrel (the core of a hydraulic cylinder) manufactured to meet application-specific specifications, including:
- Dimensional Precision: Exact inner bore diameter (ID), outer diameter (OD), and wall thickness (tolerances as tight as ±0.005 mm for critical applications).
- Surface Finish: Ultra-smooth inner bore (typically Ra 0.2–0.8 μm) to minimize piston-seal friction and prevent fluid leakage.
- Material Customization: Selection of metals (e.g., alloy steel, stainless steel) tailored to environmental conditions (corrosion, temperature) and load requirements.
- Special Treatments: Post-honing processes like chrome plating, nitriding, or stress relieving to enhance durability, wear resistance, or corrosion protection.
Unlike standard honed tubes (which follow generic industry sizes), custom versions are designed to integrate seamlessly with other cylinder components (pistons, seals, rods) and adapt to unique operational challenges (e.g., high pressure, extreme temperatures, or aggressive fluids).
Core Benefits of Custom Honed Tubes for Hydraulic Cylinders
The customization of honed tubes addresses the limitations of standard options, delivering tangible improvements in hydraulic system performance and lifecycle cost:
1. Reduced Friction and Extended Seal Life
The primary function of honing is to create a uniformly smooth, cross-hatched inner bore surface. Custom honing ensures:
- Controlled Surface Roughness: A finish of Ra 0.4–0.8 μm (common for industrial hydraulics) reduces friction between the piston seals and bore by 30–50% compared to unhoned or poorly honed tubes. This minimizes seal wear, extending seal lifespan from 6–12 months (standard tubes) to 18–24 months (custom honed tubes).
- Cross-Hatch Pattern: Custom honing machines produce a precise cross-hatch angle (typically 30–45°) that retains a thin film of hydraulic fluid, acting as a lubricant and further reducing metal-to-metal contact.
For example, in a high-cycle industrial press (operating 1,000+ cycles/day), a custom honed tube with Ra 0.4 μm can cut seal replacement costs by 40% annually.
2. Enhanced Pressure Retention and System Efficiency
Hydraulic systems rely on tight tolerances to maintain pressure and avoid fluid leakage. Custom honed tubes:
- Dimensional Accuracy: Tight ID tolerances (e.g., H7 or H8 per ISO standards) ensure a consistent gap between the piston and bore, preventing internal leakage (fluid bypassing the piston). Internal leakage rates for custom honed tubes are typically <0.1 L/min at 35 MPa—vs. 0.5–1 L/min for standard tubes.
- Uniform Wall Thickness: Custom manufacturing eliminates wall thickness variations (common in standard tubes), which cause uneven pressure distribution and cylinder "drift" (unintended piston movement under load).
This translates to 10–15% higher system efficiency, as less hydraulic fluid is wasted, and the pump requires less energy to maintain operating pressure.
3. Material Optimization for Harsh Environments
Standard honed tubes are often limited to carbon steel, which fails in corrosive, high-temperature, or high-wear applications. Custom honed tubes allow material selection based on operational conditions:
- Corrosive Environments (marine, food processing): Stainless steel (304 or 316) or nickel-alloy honed tubes resist rust and chemical degradation.
- High-Temperature Applications (foundries, aerospace): Alloy steel (e.g., 4140) with heat treatments (tempering) maintains strength at temperatures up to 300°C.
- High-Wear Applications (construction, mining): Chrome-plated inner bores (0.05–0.1 mm thick) enhance surface hardness (up to 65 HRC), doubling the tube’s lifespan.
For a marine hydraulic cylinder exposed to saltwater, a custom 316 stainless steel honed tube will outlast a standard carbon steel tube by 5–7 years.
4. Cost Savings Through Tailored Design
While custom honed tubes have a higher upfront cost than standard options, they reduce long-term expenses by:
- Minimizing Downtime: Fewer seal failures, pressure leaks, and tube replacements mean less unplanned downtime (critical for industries like manufacturing, where downtime costs $10,000–$100,000/hour).
- Eliminating Rework: Standard tubes often require on-site machining to fit custom cylinders; custom honed tubes arrive ready to install, cutting labor costs.
- Extending Cylinder Lifespan: A well-designed custom honed tube can extend hydraulic cylinder lifespan from 5–7 years (standard) to 10–15 years.
Manufacturing Process of Custom Honed Tubes
The production of custom honed tubes is a multi-step, precision-controlled process to ensure consistency and quality:
1. Material Selection and Sourcing
- Based on application requirements (load, temperature, corrosion), the manufacturer selects raw material: carbon steel (1045), alloy steel (4140), stainless steel (304/316), or specialty alloys.
- Raw materials are sourced with certified mechanical properties (tensile strength, hardness) to meet industry standards (e.g., ASTM A519 for steel tubes).
2. Cold Drawing (Precision Sizing)
- The raw metal tube is pulled through a die (cold drawing) to achieve the desired OD, ID, and wall thickness. Cold drawing improves material strength (by 20–30%) and dimensional accuracy (tolerances ±0.01 mm).
- For ultra-thin or thick-walled tubes, multiple drawing passes may be used, with intermediate annealing (heat treatment) to reduce brittleness.
3. Honing (Surface Finishing)
- The cold-drawn tube is mounted on a honing machine, where rotating abrasive stones (typically diamond or CBN) are fed into the inner bore.
- The machine controls three critical parameters for customization:
- Surface Roughness: Adjusting stone grit (80–600 grit) to achieve Ra 0.2–1.6 μm.
- Cross-Hatch Angle: Setting the stone’s oscillation speed to create a 30–45° pattern for fluid retention.
- Bore Straightness: Ensuring the bore is straight within 0.01 mm/m to prevent piston binding.
4. Post-Honing Treatments (Customization Step)
- Surface Coatings: Chrome plating (for wear resistance), zinc plating (for corrosion resistance), or PTFE coating (for low friction).
- Heat Treatments: Quenching and tempering (to increase hardness), or stress relieving (to reduce internal stresses from cold drawing).
- Machining: Adding threaded ports, flanges, or chamfers to match the hydraulic cylinder’s assembly requirements.
5. Quality Control (QC) and Certification
- Dimensional Testing: Using coordinate measuring machines (CMMs) to verify OD, ID, wall thickness, and straightness.
- Surface Finish Testing: Using a profilometer to measure Ra and cross-hatch angle.
- Pressure Testing: Subjecting the tube to hydraulic pressure (1.5× the maximum operating pressure) to check for leaks.
- Material Certification: Providing mill test reports (MTRs) to confirm material properties and compliance with standards (e.g., ISO 4394-1 for hydraulic tubes).
Key Industrial Applications of Custom Honed Tubes
Custom honed tubes are essential for hydraulic cylinders in industries where standard tubes fail to meet performance or environmental demands:
| Industry | Application | Customization Focus |
|------------------------|----------------------------------------------|----------------------------------------------|
| Construction | Excavator arms, loader buckets, crane booms | High-wear chrome-plated bores; alloy steel for heavy loads. |
| Manufacturing | Industrial presses, injection molding machines | Ultra-precise ID tolerances (H7) for pressure retention; low-friction Ra 0.4 μm finish. |
| Marine | Ship steering systems, winches | 316 stainless steel for saltwater corrosion resistance. |
| Aerospace | Landing gear, flight control actuators | Lightweight alloy steel (e.g., 4340); heat-resistant treatments for high temperatures. |
| Food Processing | Conveyor lifts, packaging machinery | Sanitary 304 stainless steel; smooth Ra 0.2 μm finish for easy cleaning (complies with FDA standards). |
| Mining | Mine shuttle car actuators, drill rigs | Thick-walled alloy steel (10+ mm) for impact resistance; corrosion-resistant coatings. |
How to Source Reliable Custom Honed Tubes
Selecting the right manufacturer is critical to ensuring custom honed tubes meet your hydraulic cylinder’s requirements. Key criteria to evaluate:
1. Technical Expertise
- Look for manufacturers with 10+ years of experience in hydraulic honed tubes, particularly in your industry (e.g., aerospace, marine).
- Verify in-house engineering capabilities: Can they assist with material selection, tolerance design, and post-honing treatments?
2. Quality Assurance (QA) Processes
- Ensure the manufacturer follows ISO 9001 quality management standards.
- Ask for QC documentation: Do they provide CMM reports, profilometer data, and pressure test certificates?
- Inquire about failure rates: Reputable manufacturers have a failure rate <0.5% for custom honed tubes.
3. Customization Capabilities
- Check if they can accommodate non-standard dimensions (e.g., large ID >200 mm, thin walls <2 mm) or specialty materials (e.g., Inconel, titanium).
- Confirm lead times: For urgent projects, can they deliver custom tubes in 2–4 weeks (vs. 6–8 weeks for standard manufacturers)?
4. Customer Support
- Choose a manufacturer that offers post-sales support: Will they assist with installation guidance or address quality issues promptly?
- Look for references: Ask for case studies or customer testimonials from businesses in your industry.
