Hydraulic cylinders are the workhorses of linear motion in industrial, mobile, and construction systems—converting hydraulic fluid pressure into mechanical force to lift, push, pull, or position loads. Selecting the wrong cylinder (e.g., undersized bore, incompatible mounting, or poor environmental resistance) can lead to system inefficiency, premature failure, or safety hazards. With options ranging from single-acting to telescopic designs, and variables like load capacity, stroke length, and mounting style to consider, choosing the right hydraulic cylinder requires a structured approach. This guide breaks down the critical steps, key considerations, and technical factors to ensure your cylinder aligns with your system’s requirements, operational environment, and long-term reliability goals.
Before evaluating options, clarify the core purpose and components of hydraulic cylinders—this foundational knowledge ensures you prioritize relevant factors:
What Is a Hydraulic Cylinder?
A hydraulic cylinder is a linear actuator that uses pressurized hydraulic fluid (oil) to drive a piston, generating linear force and motion. Unlike pneumatic cylinders (which rely on compressed air and have lower force density), hydraulic cylinders excel in high-load applications (100–10,000+ kg) due to the incompressibility of hydraulic fluid.
Key Components (and Their Role in Selection)
Each component influences the cylinder’s performance and suitability for your application:

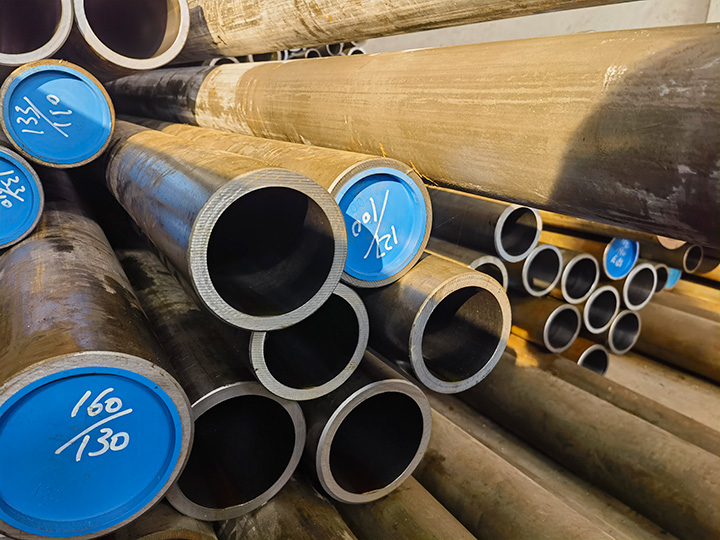

- Cylinder Barrel: The pressure vessel that holds hydraulic fluid. Material (steel, stainless steel, aluminum) impacts corrosion resistance and pressure tolerance.
- Piston: Converts fluid pressure into linear motion. Piston diameter (bore size) directly determines force output (Force = Pressure × Bore Area).
- Piston Rod: Transmits force from the piston to the load. Rod diameter affects stability (prevents bending under side loads) and seal longevity.
- End Caps: Seal the barrel and house bearings/seals. Design (welded vs. tie-rod) impacts maintenance access and environmental protection.
- Seals: Prevent fluid leakage and contamination. Seal material (nitrile, polyurethane, PTFE) must match operating temperature and fluid type.
Step 1: Classify Cylinder Types by Application Needs
Hydraulic cylinders are categorized by their operating principle and design—each type is optimized for specific use cases. Start by matching the cylinder type to your application’s motion requirements:
| Cylinder Type | Operating Principle | Ideal Applications | Key Limitations |
|-------------------------|-------------------------------------------------------------------------------------|---------------------------------------------------|---------------------------------------------------|
| Single-Acting | Hydraulic pressure extends the piston; external force (spring, gravity, load) retracts it. | Lifting (e.g., dump truck beds), clamping, or applications where retraction force is minimal. | Limited to one-directional force; spring failure can cause jams. |
| Double-Acting | Hydraulic pressure extends *and* retracts the piston (fluid flows to both sides of the piston). | Precise bidirectional motion (e.g., robotic arms, press machines, excavator buckets). | Higher complexity; requires more hydraulic valves. |
| Telescopic | Multiple nested “stages” extend sequentially to provide long strokes from a compact retracted length. | Mobile equipment (e.g., crane booms, garbage truck arms) with limited space. | Lower force capacity than single-stage cylinders; prone to contamination in harsh environments. |
| Tie-Rod | End caps secured by external tie rods (threaded rods); easy to disassemble. | Industrial applications (e.g., manufacturing presses, conveyors) where maintenance access is critical. | Bulkier than welded cylinders; less suitable for mobile equipment. |
| Welded | End caps welded directly to the barrel; compact, lightweight design. | Mobile equipment (e.g., tractors, skid steers) or tight spaces. | Difficult to repair (welds must be cut); less accessible for seal replacement. |
Step 2: Calculate Critical Technical Specifications
Once you’ve selected the cylinder type, define the technical parameters that ensure it can handle your load and motion requirements without failure:
1. Force Requirement (Bore Size Selection)
The cylinder’s force output must exceed the maximum load (including safety margins) to avoid stalling or damage. Use the formula:
Force (N) = System Pressure (MPa) × π × (Bore Diameter (m) / 2)²
- Example: For a system operating at 21 MPa (3,000 psi) and a 50 mm bore, force = 21 × π × (0.05 / 2)² ≈ 4123 N (≈ 420 kg).
- Add a 10–20% safety margin to account for dynamic loads (e.g., sudden impacts in construction) or pressure fluctuations.
2. Stroke Length
Stroke length is the distance the piston travels (from fully retracted to fully extended). To determine it:
- Measure the *minimum required travel* for your application (e.g., 1.2 m to lift a dump truck bed).
- Avoid over-sizing: A stroke longer than needed increases cylinder weight, cost, and the risk of rod bending (due to increased lever arm).
3. Operating Pressure
Ensure the cylinder’s rated pressure (maximum pressure it can safely handle) matches or exceeds your hydraulic system’s operating pressure.
- Industrial systems typically operate at 10–35 MPa (1,500–5,000 psi); mobile systems (e.g., excavators) may reach 35–45 MPa (5,000–6,500 psi).
- Using a cylinder with a lower rated pressure than the system can cause barrel rupture or seal failure.
4. Speed Requirements
Cylinder speed (m/s) depends on hydraulic fluid flow rate and bore size (Speed = Flow Rate / Bore Area). For high-speed applications (e.g., automated assembly lines):
- Choose cylinders with low-friction seals (e.g., PTFE) to reduce wear.
- Ensure the hydraulic system can supply sufficient flow (use larger hoses/pumps if needed) to avoid slow or erratic motion.
Step 3: Match Mounting Style to Load and Motion
Mounting style determines how the cylinder attaches to your machine—and directly impacts load distribution, stress on components, and motion accuracy. Select a mounting option based on whether the load is axial (inline with the cylinder) or radial (side loads):
| Mounting Style | Best For | Key Considerations |
|-------------------------|--------------------------------------------------------------------------|---------------------------------------------------|
| Flange Mount | Axial loads (e.g., presses, lifts) where the cylinder is fixed at both ends. | Provides high stability; requires precise alignment to avoid binding. |
| Trunnion Mount | Pivoting motion (e.g., excavator arms, agricultural machinery) with moderate radial loads. | Mounts at the cylinder’s midpoint; distributes stress evenly. |
| Clevis Mount | Applications with slight misalignment (e.g., conveyor lifts) or pivoting motion. | Uses pins to connect to the machine; allows minor angular adjustment. |
| Foot Mount | Fixed-position axial loads (e.g., stationary presses) where the cylinder is mounted to a flat surface. | Simple installation; not suitable for radial loads (can cause rod bending). |
Step 4: Account for Operating Environment
Environmental factors are a top cause of premature cylinder failure. Choose materials and features that resist damage from:
1. Temperature
- Low Temperatures (-40°C to 0°C): Use low-temperature hydraulic fluid (ISO VG 32) and seals made of nitrile or ethylene propylene (EPDM) to prevent hardening.
- High Temperatures (80°C to 150°C): Select heat-resistant seals (e.g., Viton) and stainless steel barrels to avoid fluid degradation or material warping.
2. Contamination and Corrosion
- Harsh Environments (construction, mining): Opt for cylinders with chrome-plated piston rods (resist scratches and rust) and wiper seals (prevent dirt/debris from entering the barrel).
- Wet/Corrosive Environments (marine, food processing): Choose stainless steel (304 or 316) cylinders or those with epoxy coatings to resist saltwater or chemical exposure.
3. Dust, Debris, or Moisture
- Add rod boots (flexible covers) to protect the piston rod from dirt or moisture in off-road or outdoor applications.
- For food-grade applications (e.g., packaging machinery), use cylinders with FDA-approved seals and smooth surfaces to prevent bacterial buildup.
Step 5: Ensure System Compatibility
The cylinder must integrate seamlessly with other hydraulic components to avoid inefficiency or failure:
- Fluid Compatibility: Match the cylinder’s seal material to your hydraulic fluid (e.g., Viton for synthetic fluids, nitrile for mineral oils).
- Port Size and Type: Ensure the cylinder’s hydraulic ports (e.g., NPT, BSPP threads) match the system’s hoses and valves to avoid leakage.
- Flow and Pressure Ratings: Confirm the cylinder’s flow capacity (L/min) aligns with the system’s pump output—undersized ports can restrict flow, reducing speed.
Step 6: Select a Reliable Supplier
Choosing a reputable supplier is as critical as technical selection—quality manufacturing and support prevent costly downtime:
- Industry Certifications: Look for suppliers with ISO 9001 (quality management) or ISO 14001 (environmental management) certifications to ensure compliance with global standards.
- Customization Capabilities: For unique applications (e.g., non-standard bore/stroke, specialized mounts), select a supplier that offers custom engineering.
- After-Sales Support: Prioritize suppliers that provide technical assistance, replacement parts (seals, rods), and repair services to extend the cylinder’s lifespan.
