In engineering, manufacturing, and construction, cylinder tubes are foundational components defined by their hollow, cylindrical geometry and ability to balance structural strength, fluid/gas transport efficiency, and versatility across materials. Unlike solid cylindrical rods (which prioritize load-bearing without hollow space) or non-circular tubing (e.g., square, rectangular), cylinder tubes are distinguished by their uniform circular cross-section—a design that distributes stress evenly, minimizes fluid friction, and enables compatibility with standardized fittings (e.g., valves, connectors). But what exactly classifies a cylinder tube, how do material choices impact its performance, and why is it ubiquitous across industries from aerospace to plumbing? This guide breaks down its technical definition, core characteristics, material options, applications, and manufacturing processes to clarify its role in modern engineering systems.

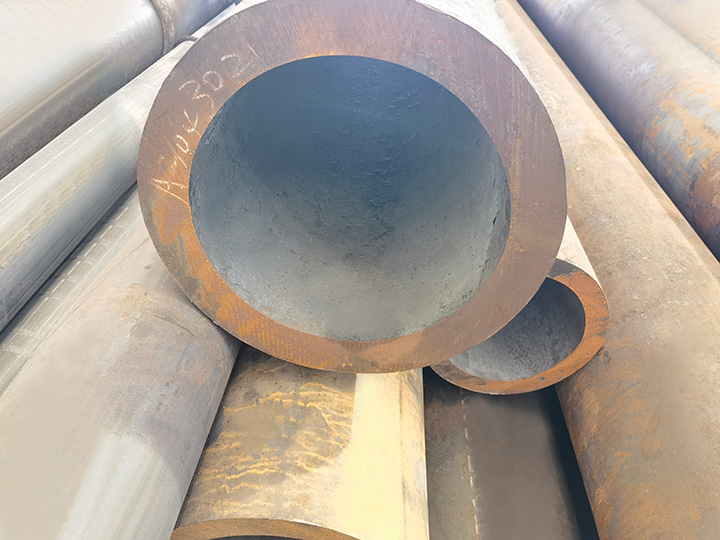

A cylinder tube (or cylindrical tube) is a hollow, elongated structure with consistent circular cross-sections along its entire length. Its technical classification relies on three non-negotiable attributes, distinguishing it from other tubular or cylindrical components:
1. Hollow Core: Unlike solid cylinders (e.g., steel rods), cylinder tubes have an internal cavity (bore) that enables fluid/gas transport, component integration (e.g., pistons in hydraulic cylinders), or weight reduction without sacrificing strength.
2. Uniform Circular Cross-Section: The outer and inner diameters (OD and ID) remain constant along the tube’s length—ensuring even stress distribution (critical for pressure applications) and predictable fluid flow (via consistent cross-sectional area).
3. Defined Wall Thickness: The distance between the outer and inner surfaces (wall thickness, t) is engineered to balance structural integrity (resisting external pressure or bending) and weight efficiency. Thickness is often specified by standards (e.g., ASTM for metals, ISO for plastics) to ensure compatibility with industry applications.
Technical Note: Cylinder tubes are distinct from "pipes," though the terms are sometimes confused. Pipes are primarily designed for fluid/gas transport and sized by nominal diameter (a non-precise industry standard), while cylinder tubes are engineered for precision applications (e.g., hydraulic systems) and sized by exact OD/ID measurements.
Common Materials for Cylinder Tubes and Their Performance Traits
Material selection for cylinder tubes is dictated by application requirements: pressure resistance, corrosion exposure, weight constraints, thermal conductivity, and cost. Below are the most widely used materials and their specialized roles:
| Material | Key Properties | Ideal Applications |
|------------------------|--------------------------------------------------------------------------------|---------------------------------------------------|
| Steel (Carbon/Alloy) | High tensile strength (300–1,500 MPa), excellent pressure resistance, affordability. | Structural supports (construction scaffolding), hydraulic/pneumatic cylinder barrels, automotive drive shafts. |
| Galvanized Steel | Steel coated with zinc; enhanced corrosion resistance (vs. bare steel). | Outdoor construction (fencing, structural frames), water pipes in corrosive environments. |
| Aluminum | Lightweight (1/3 the density of steel), good corrosion resistance, moderate strength. | Aerospace components (aircraft hydraulic lines), automotive exhaust systems, lightweight structural frames. |
| Copper | Exceptional thermal conductivity, natural corrosion resistance, antimicrobial properties. | Plumbing (water supply lines), HVAC refrigerant tubes, electrical grounding rods. |
| Stainless Steel (304/316) | High corrosion resistance (resists saltwater, chemicals), biocompatibility. | Medical devices (surgical instruments), marine applications (boat rigging), food processing equipment (sanitary tubes). |
| Plastics (PVC, HDPE, PTFE) | Lightweight, chemical resistance, low friction, low cost. | Plumbing (PVC drain pipes), chemical transport (HDPE), high-temperature fluid lines (PTFE). |
Industrial and Commercial Applications of Cylinder Tubes
The circular cross-section, hollow design, and material versatility of cylinder tubes make them indispensable across sectors. Below are their most impactful use cases:
1. Construction and Structural Engineering
- Load-Bearing Supports: Steel cylinder tubes (often galvanized) are used in scaffolding, trusses, and architectural frameworks—their circular shape distributes compressive stress evenly, supporting heavy loads (e.g., 100+ kg per tube) without deformation.
- Facade and Aesthetics: Aluminum or stainless steel cylinder tubes create sleek, modern architectural elements (e.g., curtain wall framing, railings) due to their clean lines and corrosion resistance.
2. Hydraulic and Pneumatic Systems
- Cylinder Barrels: Precision steel or stainless steel cylinder tubes form the core of hydraulic/pneumatic cylinders—their smooth inner bore (machined to ±0.01 mm tolerance) allows pistons to move with minimal friction, generating linear force for machinery (e.g., excavator arms, factory presses).
- Fluid Lines: Copper or plastic cylinder tubes transport hydraulic oil or compressed air between system components (pumps, valves)—their low internal friction ensures efficient pressure transfer.
3. Automotive and Aerospace
- Exhaust Systems: Aluminized steel or stainless steel cylinder tubes resist high temperatures (up to 800°C) and corrosion from exhaust gases, making them ideal for car/truck exhaust manifolds.
- Aerospace Hydraulics: Lightweight aluminum or titanium cylinder tubes (titanium for high-pressure applications) are used in aircraft landing gear and control systems—their strength-to-weight ratio reduces fuel consumption.
4. Plumbing and Fluid Transport
- Water Supply: Copper or PEX (plastic) cylinder tubes deliver potable water—copper’s antimicrobial properties prevent bacterial growth, while PEX is flexible and easy to install in tight spaces.
- Gas Distribution: Steel or polyethylene (PE) cylinder tubes transport natural gas—steel resists high pressure (up to 10 MPa), while PE is corrosion-resistant for underground use.
5. Medical and Sanitary Industries
- Medical Devices: Stainless steel 316 cylinder tubes are used in surgical tools (e.g., endoscopes) and implantable devices (e.g., orthopedic rods)—their biocompatibility and corrosion resistance avoid tissue irritation.
- Food Processing: Sanitary stainless steel cylinder tubes transport liquids (e.g., milk,果汁) in food plants—their smooth inner surface is easy to clean, complying with FDA and EU food safety standards.
Manufacturing Processes for Cylinder Tubes
The production of cylinder tubes varies by material but follows a standardized workflow to ensure precision and consistency. Below is a breakdown of the most common manufacturing methods:
1. For Metal Cylinder Tubes
a. Seamless Tube Manufacturing (for High-Pressure Applications)
- Step 1: Metal Billet Heating: A solid metal billet (steel, aluminum, copper) is heated to 1,100–1,300°C (for steel) to make it malleable.
- Step 2: Piercing: A mandrel (a long metal rod) is pushed through the billet to create a hollow cavity, forming a "hollow bloom."
- Step 3: Extrusion/Rolling: The hollow bloom is passed through rolling mills or extruders to reduce its diameter and wall thickness to the desired dimensions. For precision (e.g., hydraulic tubes), cold drawing is used—pulling the tube through a die to achieve tight tolerances (±0.005 mm).
- Step 4: Heat Treatment: The tube is annealed (heated and cooled slowly) to reduce brittleness and improve strength.
- Step 5: Finishing: The inner bore is honed (machined with abrasive tools) to create a smooth surface (Ra < 0.8 μm) for hydraulic applications. Surface treatments (galvanizing, anodizing) are added for corrosion resistance.
b. Welded Tube Manufacturing (for Low-to-Medium Pressure Applications)
- Step 1: Metal Coil Unrolling: A flat metal coil (steel, aluminum) is unrolled and cut into flat strips.
- Step 2: Forming: The strip is bent into a cylindrical shape using roll-forming machines, with the edges meeting to form a seam.
- Step 3: Welding: The seam is welded using high-frequency induction welding (for steel) or TIG welding (for aluminum) to create a leakproof joint.
- Step 4: Sizing/Cutting: The welded tube is passed through sizing rolls to ensure uniform diameter, then cut to length.
2. For Plastic Cylinder Tubes
- Extrusion: Plastic resin (PVC, HDPE) is melted and forced through a circular die to form a hollow tube. A mandrel inside the die maintains the inner cavity.
- Cooling: The extruded tube is cooled in a water bath to solidify its shape.
- Cutting/Finishing: The tube is cut to length, and fittings (e.g., threads) are added via injection molding or machining.
Quality Control Standards for Cylinder Tubes
To ensure reliability, cylinder tubes must meet industry-specific standards that regulate dimensions, strength, and performance:
- Metals: ASTM A519 (carbon steel seamless tubes), ASTM B280 (copper tubes for plumbing), ISO 4394-1 (hydraulic steel tubes).
- Plastics: ASTM D1785 (PVC pipes/tubes), ISO 4427 (PE pipes for water supply).
- Testing: Tubes undergo pressure testing (hydrostatic testing—filling with water and applying pressure to check for leaks), dimensional testing (using calipers/micrometers), and tensile strength testing (pulling until failure to measure strength).
