Hydraulic cylinders are the primary linear actuators in industrial, mobile, and construction systems—converting hydraulic fluid pressure into controlled mechanical force and motion to lift, push, pull, or position heavy loads (from 100 kg to 100+ tons). Their reliability stems from a simple yet robust design rooted in Pascal’s Law, but their performance depends on matching the right cylinder type to application needs (e.g., single-acting for lifting, telescopic for space-constrained mobile equipment). To fully leverage their capabilities, it is critical to understand not just how they work, but also their structural components, type variations, design considerations, and maintenance requirements. This guide breaks down the core working principle of hydraulic cylinders, explores their key types, and outlines best practices for design and upkeep to ensure long-term efficiency.
Before diving into the working principle, it is essential to identify the cylinder’s structural parts—each plays a critical role in converting fluid pressure to linear motion:
| Component | Function |
|-------------------------|--------------------------------------------------------------------------|

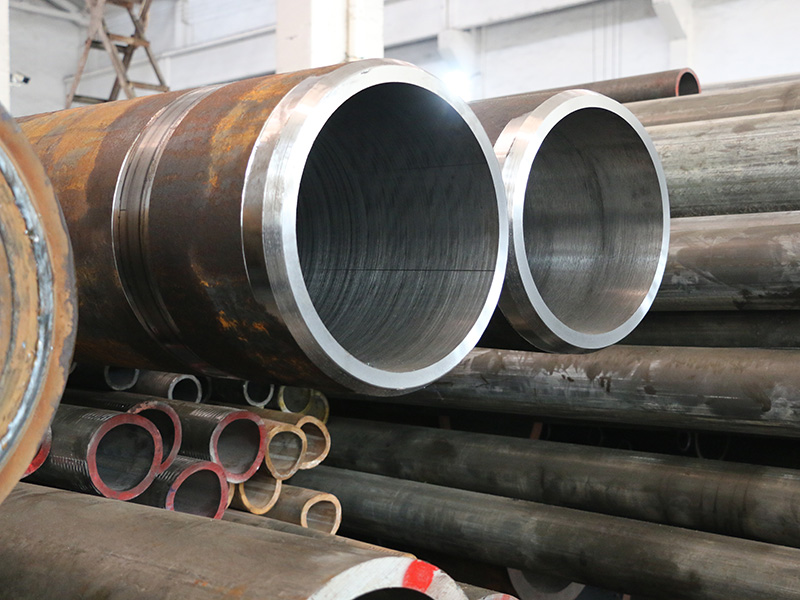

| Cylinder Tube (Barrel) | A rigid, hollow pressure vessel (typically steel or stainless steel) that houses the piston and hydraulic fluid. Its inner surface (bore) is precision-machined (Ra < 0.8 μm) to minimize friction and prevent seal damage. |
| Piston | A cylindrical component that slides inside the tube, dividing the cylinder into two sealed chambers (cap end and rod end). It has grooves for seals (e.g., piston rings, U-cups) to prevent fluid leakage between chambers. |
| Piston Rod | A solid metal rod (attached to the piston) that extends through one end cap to connect the cylinder to the load. Its outer surface is chrome-plated to resist corrosion and wear. |
| End Caps | Two sealed plates (cap end and rod end) that close the cylinder tube. The rod end cap includes a rod gland (with wiper seals and guide rings) to prevent fluid leakage and protect the rod from contaminants. |
| Seals | Critical for pressure retention:
- Piston Seals: Prevent fluid flow between the two cylinder chambers.
- Rod Seals: Stop fluid leakage from the rod end cap to the environment.
- Wiper Seals: Block dirt, dust, or debris from entering the cylinder (avoids bore/rod damage). |
| Ports | Threaded openings in the end caps that allow hydraulic fluid to enter/exit the cylinder (controlled by valves in the hydraulic system). |
The Working Principle: Pascal’s Law in Action
The operation of a hydraulic cylinder is governed by Pascal’s Law—a fundamental fluid mechanics principle stating that pressure applied to a confined, incompressible fluid is transmitted equally in all directions. This law enables the cylinder to generate high force from relatively low fluid pressure. Here’s how the principle translates to linear motion, using a double-acting cylinder (the most common type) as an example:
Step 1: Extending the Cylinder (Push Motion)
1. The hydraulic system’s pump pressurizes hydraulic fluid (typically mineral oil) to the desired pressure (e.g., 10–35 MPa for industrial systems).
2. A directional control valve routes the pressurized fluid through the cap end port (the port on the end cap opposite the piston rod) into the cap end chamber (the space between the piston and cap end).
3. The fluid pressure acts on the full area of the piston (since the cap end chamber has no rod occupying space). Using the formula Force = Pressure × Piston Area, the pressure generates a linear force that pushes the piston (and attached rod) outward.
4. As the piston moves, the fluid in the rod end chamber (the space between the piston and rod end cap) is displaced and flows back to the hydraulic reservoir through the rod end port (controlled by the directional valve).
Step 2: Retracting the Cylinder (Pull Motion)
1. The directional control valve shifts, redirecting pressurized fluid through the rod end port into the rod end chamber.
2. Now, pressure acts on the *annular area* of the piston (the piston’s total area minus the area of the piston rod, which occupies space in the rod end chamber). While the force generated during retraction is lower than during extension (due to the smaller effective area), it is still sufficient to pull the rod back into the cylinder.
3. Fluid in the cap end chamber is displaced and returns to the reservoir through the cap end port.
Key Note: Single-Acting vs. Double-Acting Motion
- Single-acting cylinders only use hydraulic pressure for one direction (e.g., extension). Retraction relies on external forces (gravity, springs, or the load’s weight) instead of fluid pressure—simpler design but limited to one-directional force applications (e.g., dump truck beds, clamping tools).
- Double-acting cylinders use fluid pressure for both extension and retraction, enabling precise control of motion in both directions (e.g., excavator arms, factory presses).
Common Types of Hydraulic Cylinders
Hydraulic cylinders are classified by design to suit specific application needs. The four most prevalent types are:
1. Single-Acting Cylinders
- Design: One fluid port (for extension); a spring or gravity drives retraction.
- Advantages: Simple, low-cost, lightweight (fewer components).
- Ideal Applications: Lifting loads (e.g., scissor lifts), clamping, or dump truck bed tilting (where gravity aids retraction).
2. Double-Acting Cylinders
- Design: Two fluid ports (one for extension, one for retraction); fluid pressure drives both directions.
- Advantages: Versatile, precise control of speed and force in both directions.
- Ideal Applications: Industrial presses, robotic arms, excavator buckets, or any application requiring push/pull motion.
3. Telescopic Cylinders
- Design: Multiple nested, concentric tube stages (like a telescope) that extend sequentially. Only the largest stage has a fluid port; smaller stages extend as fluid pressure builds.
- Advantages: Long stroke length (e.g., 2–5 m) from a compact retracted size (critical for space-limited mobile equipment).
- Ideal Applications: Dump truck lift cylinders, crane booms, or garbage truck arms (where a long stroke is needed but space is restricted).
4. Oscillating Hydraulic Cylinders (Rotary Actuators)
- Design: A piston with gear teeth meshes with a fixed gear; fluid pressure drives the piston in a linear arc (instead of straight line), rotating the gear (and attached load) 90–180°.
- Advantages: Converts fluid pressure to rotary motion without external linkages.
- Ideal Applications: Valve actuation, conveyor belt direction changes, or robotic joint rotation.
Critical Design Considerations for Hydraulic Cylinders
To ensure a hydraulic cylinder performs reliably, design must align with application requirements. Key factors to prioritize:
1. Force and Pressure Rating
- Calculate required force using Force = Pressure × Effective Piston Area. Ensure the cylinder’s maximum pressure rating (e.g., 35 MPa) exceeds the system’s operating pressure to avoid failure.
- For double-acting cylinders, account for reduced retraction force (due to the piston rod’s annular area) when sizing for pull applications.
2. Stroke Length
- Define the minimum/maximum distance the load needs to move (stroke length). Avoid over-sizing: a longer stroke than necessary increases cylinder weight, cost, and the risk of piston rod bending (from increased lever arm).
3. Mounting Style
- Choose a mounting method that matches load type (axial vs. radial) and motion:
- Flange Mount: For axial loads (e.g., presses); provides stable, rigid support.
- Trunnion Mount: For pivoting motion (e.g., excavator arms); distributes radial loads evenly.
- Clevis Mount: For applications with minor misalignment (e.g., conveyor lifts); allows angular adjustment.
4. Material Selection
- Cylinder Tube: Steel (high strength for industrial use), stainless steel (corrosion resistance for food/medical applications), or aluminum (lightweight for aerospace/mobile equipment).
- Piston Rod: Chrome-plated steel (standard) or stainless steel (corrosive environments).
- Seals: Nitrile (standard temperatures, 0–80°C), Viton (high temperatures, 80–200°C), or EPDM (low temperatures, -40–120°C).
5. Environmental Resistance
- For harsh conditions (e.g., construction, marine), add rod boots (to block debris) or corrosion-resistant coatings (e.g., zinc plating for steel tubes).
- For high-temperature applications (e.g., foundries), use heat-resistant seals and tube materials (e.g., Inconel alloy).
Maintenance Best Practices for Long-Term Efficiency
Hydraulic cylinder failure (e.g., leaks, bent rods, or seal damage) often stems from poor maintenance—leading to costly downtime. Follow these practices to extend lifespan:
1. Regular Leak Inspections
- Check seals (rod, piston) and port connections for fluid leaks weekly. Even small leaks (1 drop/minute) waste fluid and reduce system pressure. Replace worn seals immediately (use OEM seals for compatibility).
2. Rod and Bore Maintenance
- Inspect the piston rod’s chrome surface monthly for scratches, dents, or corrosion (these damage seals). Polish minor scratches with fine-grit sandpaper; replace rods with deep damage.
- For cylinder tubes, check the bore for wear or scoring during seal replacement. Hone the bore (precision machining) if surface roughness exceeds Ra 1.6 μm.
3. Hydraulic Fluid Care
- Maintain fluid cleanliness: Use a 10–25 μm filter in the hydraulic system to remove contaminants (dirt, metal shavings) that scratch the bore or damage seals.
- Monitor fluid level and temperature: Keep fluid between the reservoir’s minimum/maximum marks; avoid overheating (limit to <60°C, as high temperatures degrade seals and fluid).
4. Preventive Lubrication
- Lubricate mounting points (e.g., trunnion pins, clevis bolts) monthly with lithium grease to reduce friction and wear.
5. Timely Repairs
- Address issues immediately: A bent rod or leaking seal will worsen over time, leading to more extensive (and costly) damage (e.g., bore scoring). For complex repairs (e.g., tube honing), consult a certified hydraulic technician.
