Comprehensive Analysis of Manufacturing Materials, Application Fields and Working Principles of Hydraulic Cylinder Barrels



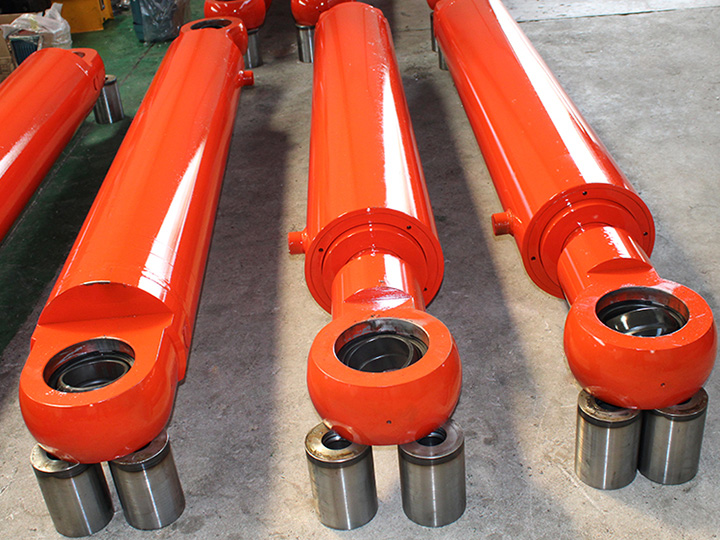

As the core component of the hydraulic system, the hydraulic cylinder barrel plays a crucial role in transmitting hydraulic energy and driving mechanical movement. This article will systematically elaborate on its manufacturing materials, application fields and working principles to help readers gain an in - depth understanding of this important component.



I. Selection of Manufacturing Materials and Technical Requirements

The manufacturing materials of hydraulic cylinder barrels need to balance strength, pressure resistance and wear resistance.

1. Cylinder Barrel Materials

In low - pressure environments (e.g., below 20 MPa), No. 20 seamless steel pipes are usually used, while in medium - and high - pressure scenarios (35 MPa and above), No. 45 seamless steel pipes are selected. These steels are processed by precision rolling or honing. The inner wall roughness can be controlled within 0.4 μm to ensure sealing and pressure - resistance performance. For special working conditions, some cylinder barrels use cast steel ZG230 - 450 or alloy steel 18MnMoNb to improve overall strength.

2. Piston Rod Materials

Piston rods mostly use No. 45 steel or 38CrMoAlAn alloy structural steel. After quenching and tempering, the hardness reaches 229 - 285 HB. To improve wear resistance, the surface needs to be treated by high - frequency quenching (hardness 45 - 55 HRC) and chrome - plated. The coating thickness is 0.03 - 0.05 mm, and the roughness is maintained at Ra 0.4 - 0.8 μm.

3. Sealing and Guiding Components

Guide sleeves often use a cast - iron matrix coated with a wear - resistant layer of brass or bronze. Sealing devices mostly use imported nitrile rubber, fluororubber or polytetrafluoroethylene materials, which have both high - temperature resistance and anti - aging properties.



II. Multi - field Application Scenarios with Wide Penetration

Thanks to its stability and high - load - carrying capacity, the hydraulic cylinder barrel has penetrated into multiple industrial fields:

- Construction Machinery: The lifting systems of loaders and bulldozers rely on hydraulic cylinders for driving.

- Transportation: The telescopic arms of truck cranes and the loading and unloading mechanisms of forklifts all require hydraulic power support.

- Metallurgy and Mining: The high - pressure cylinders in continuous casting machines and ore crushing equipment can withstand extreme working conditions.

- Agriculture and Water Conservancy: The hydraulic systems of harvesters and the gate opening and closing devices all use customized cylinder barrels.

- Special Equipment: The stroke of the three - stage/four - stage hydraulic cylinders in oil drilling machinery can reach 6200 mm, and the thrust can exceed 50 tons.



III. Operating Mechanism Based on Pascal's Principle

The hydraulic cylinder barrel realizes mechanical movement through the static pressure transmission in the closed oil chamber. Its core principle includes the following aspects:

1. Energy Conversion Process

When the hydraulic oil enters the oil chamber after being pressurized by the pump station, the difference in the pressure - bearing areas on both sides of the piston creates a thrust difference, which drives the piston rod to move linearly, converting hydraulic energy into mechanical energy.

2. Synergistic Effect of Key Components

- Buffer Device: Through a throttle valve or an adjustable damping structure, the piston is decelerated to a stop at the end of the stroke to avoid impacting the cylinder head.

- Exhaust System: The automatic exhaust valve can eliminate the air bubbles in the oil to prevent the system from creeping or vibrating.

- Multi - layer Sealing Design: Combined sealing rings (such as Stauff seal and Glyd ring) can withstand pressure in stages to reduce the risk of leakage.



IV. Structural Design and Maintenance Points

A typical hydraulic cylinder includes five functional modules:

1. Cylinder Block Assembly: It is composed of a precisely honed cylinder barrel and a high - strength end cover. The end - cover material is selected from HT300 cast iron or forged steel according to the pressure level.

2. Moving Parts: The piston and the piston rod use an interference fit, and the coaxiality error should be less than 0.03 mm.

3. Maintenance Specifications

- Before starting new equipment, it is necessary to run it idly for 5 minutes to remove residual air.

- Monitoring the oil temperature is crucial. When the temperature continuously exceeds 80°C, the equipment should be shut down for cooling to avoid accelerated aging of the sealing parts.

- Regularly inspect the surface coating of the piston rod. If the scratch depth exceeds 0.02 mm, re - chrome plating is required.

Through scientific material selection, precision manufacturing and standardized maintenance, modern hydraulic cylinder barrels have achieved a service life of more than 10,000 hours and can still maintain stable output under heavy - load and high - frequency working conditions, continuously promoting the technological upgrading of industrial equipment.
